Number-crunching Ariane 6 – Ariane 62 and Ariane 64

Innovation Culture

29.04.2022

What are the differences between Ariane 62 and Ariane 64? Some numbers will help explain.



  • 2 versions available, depending on the performance needed to carry out the mission. Ariane 62 with 2 boosters and Ariane 64 with 4.
  • 4,500 kg to geostationary transfer orbit (GTO), or 10,000 kg to low Earth orbit (LEO): this is the mass that Ariane 62 can carry.
  • 11,500 kg to GTO and 20,000 kg to LEO: these are the payload figures for Ariane 64.
  • 530 metric tons and 850 metric tons: these are the launch masses of Ariane 62 and Ariane 64. 530 metric tons corresponds to 300 times the weight of an average car.
  • 62 m: this is the height of Ariane 64 or Ariane 62 when fitted with its longest 20 m fairing, for example for constellation deployment missions (as compared with 57 m, or exactly the height of the 1st floor of the Eiffel Tower, when Ariane 62 opts for the 14-m long fairing).
  • 5.40 m: the diameter is the same for Ariane 62 and Ariane 64, corresponding to just over twice the width of a city bus, giving some idea of how much room there is inside.
  • 4,650 kN: the thrust of an Ariane 6 booster in a vacuum (3,500 kN at lift-off, with an average of 4,500 kN. Ariane 62 and Ariane 64 are fitted with the same boosters, the only difference being the number).

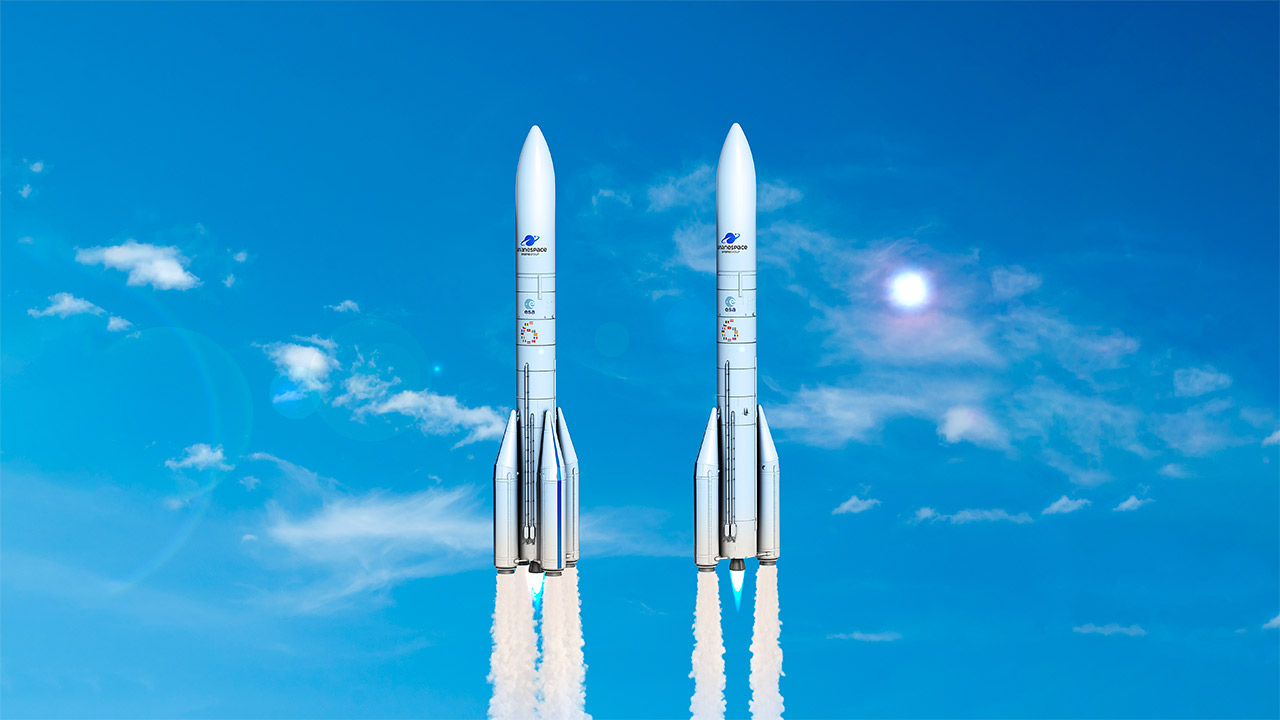

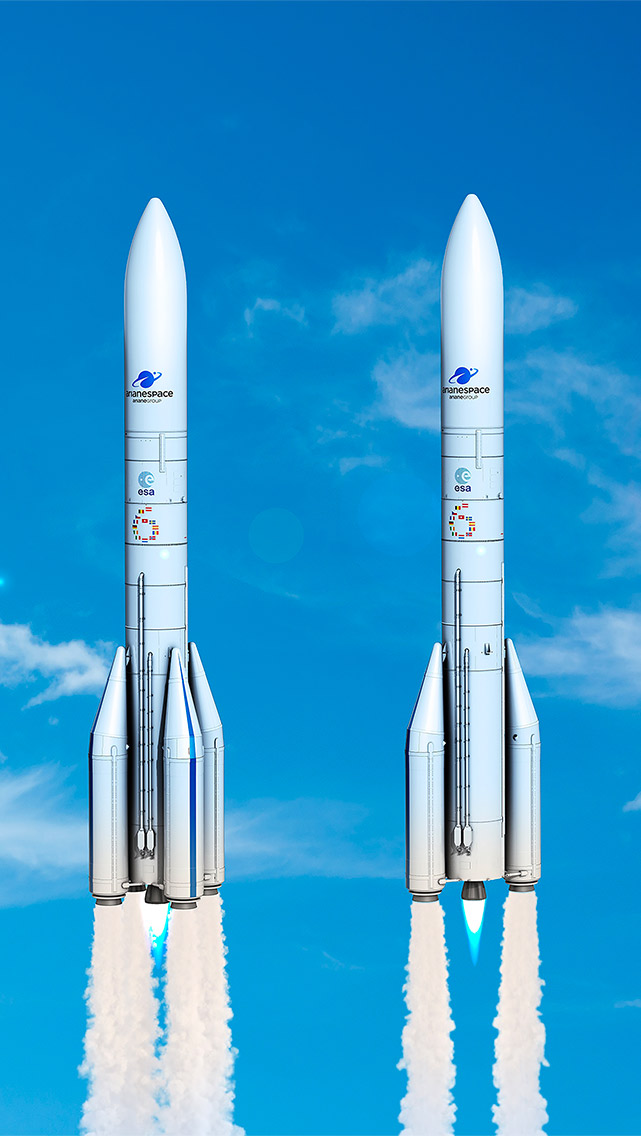

‘@arianegroup – Ariane 64

‘@arianegroup – Ariane 62





The two Ariane 6 launcher variants may be designed for different missions, but the same ArianeGroup design and production expertise is meticulously applied to both of them.

To find out more about Ariane 6, check out this page on our website:
